Signal Transmitter Module
VOH

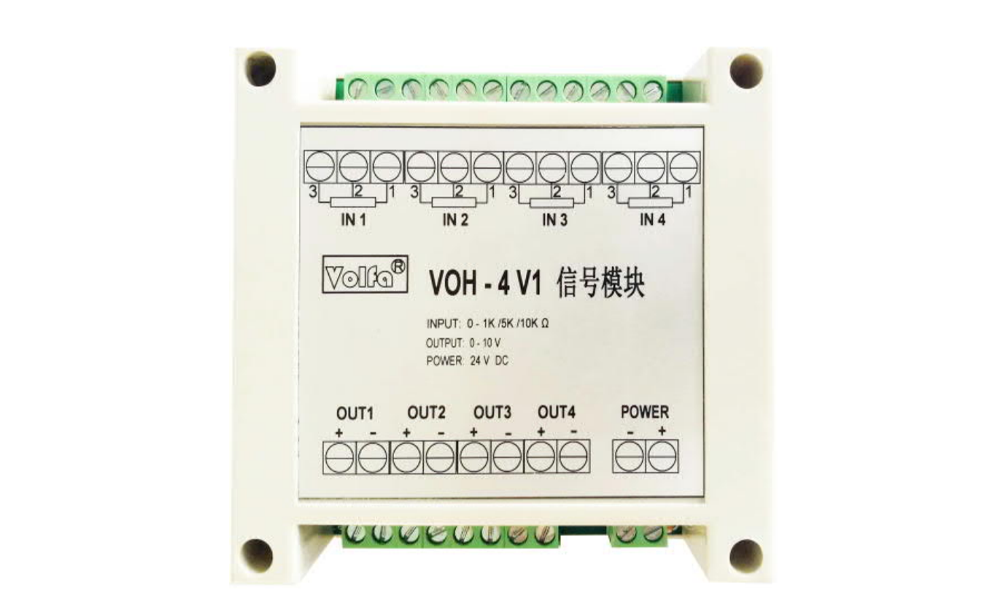

VOH - 4 Rail-mounted Signal Module
An analog signal conversion module specifically designed for
potentiometric displacement sensors and angle sensors.
Standard signals: 0-20mA, 4-20mA, 0-5V, 0-10V output
Full-scale and zero output adjustable (adjustment regulators
built-in)
Reverse polarity protection (reverse connection protection),
with an internal DC/DC converter for power isolation function.
35mm DIN standard rail mounting saves space.
Plastic housing PA66
Operating temperature: -30 - 70℃
Operating voltage: 18 - 30V DC
Temperature drift coefficient: 30 ppm/K
Linearity: 0.05%
Power consumption: less than or equal to 100 mA
Product Introduction
VOH - 4 Rail-mounted Signal Module
An analog signal conversion module specifically designed for
potentiometric displacement sensors and angle sensors.
Standard signals: 0-20mA, 4-20mA, 0-5V, 0-10V output
Full-scale and zero output adjustable (adjustment regulators
built-in)
Reverse polarity protection (reverse connection protection),
with an internal DC/DC converter for power isolation function.
35mm DIN standard rail mounting saves space.
Plastic housing PA66
Operating temperature: -30 - 70℃
Operating voltage: 18 - 30V DC
Temperature drift coefficient: 30 ppm/K
Linearity: 0.05%
Power consumption: less than or equal to 100 mA
Dimension
Technical Characteristics
VOH-4V1 DC0-10V output
VOH-4V2 DC0-5V output
VOH-4A1 DC4-20mA output
Other products
• Power supply isolation, with DC/DC isolation module.
• Excellent linearity up to 0.02%.
