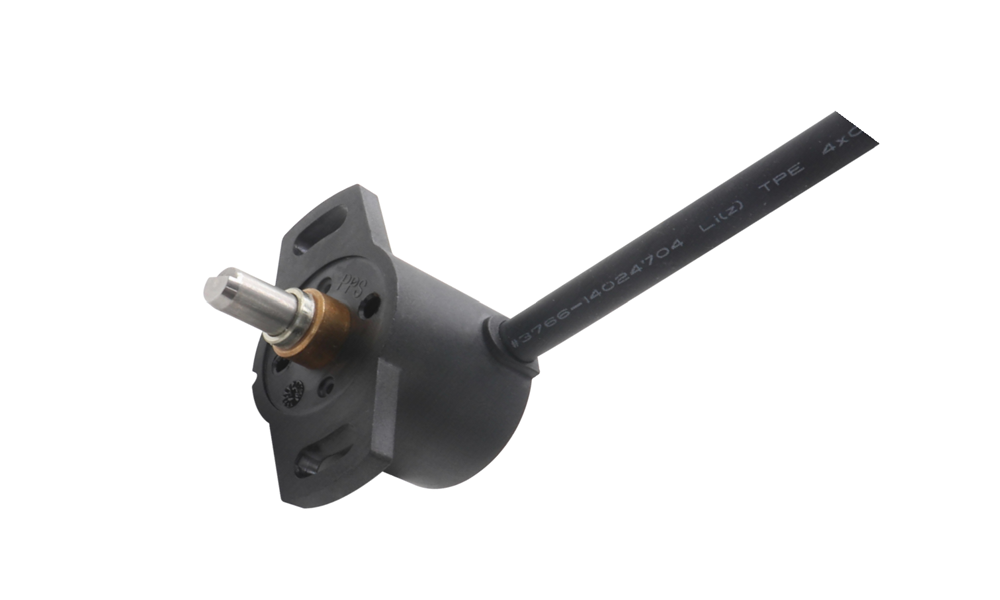

Rotary Position Sensor
WDH28
• Non-contact, magnetic induction measurement technology
• Working range up to 360°
• 12-bit resolution, independent linearity ±0.5% • Very small lag Angle
• Compact and robust, long service life
• Protection class IP 65
• Rotating shaft 6mm with shaft punctuation
Product Introduction
• Non-contact, magnetic induction measurement technology
• Working range up to 360°
• 12-bit resolution, independent linearity ±0.5% • Very small lag Angle
• Compact and robust, long service life
• Protection class IP 65
• Rotating shaft 6mm with shaft punctuation

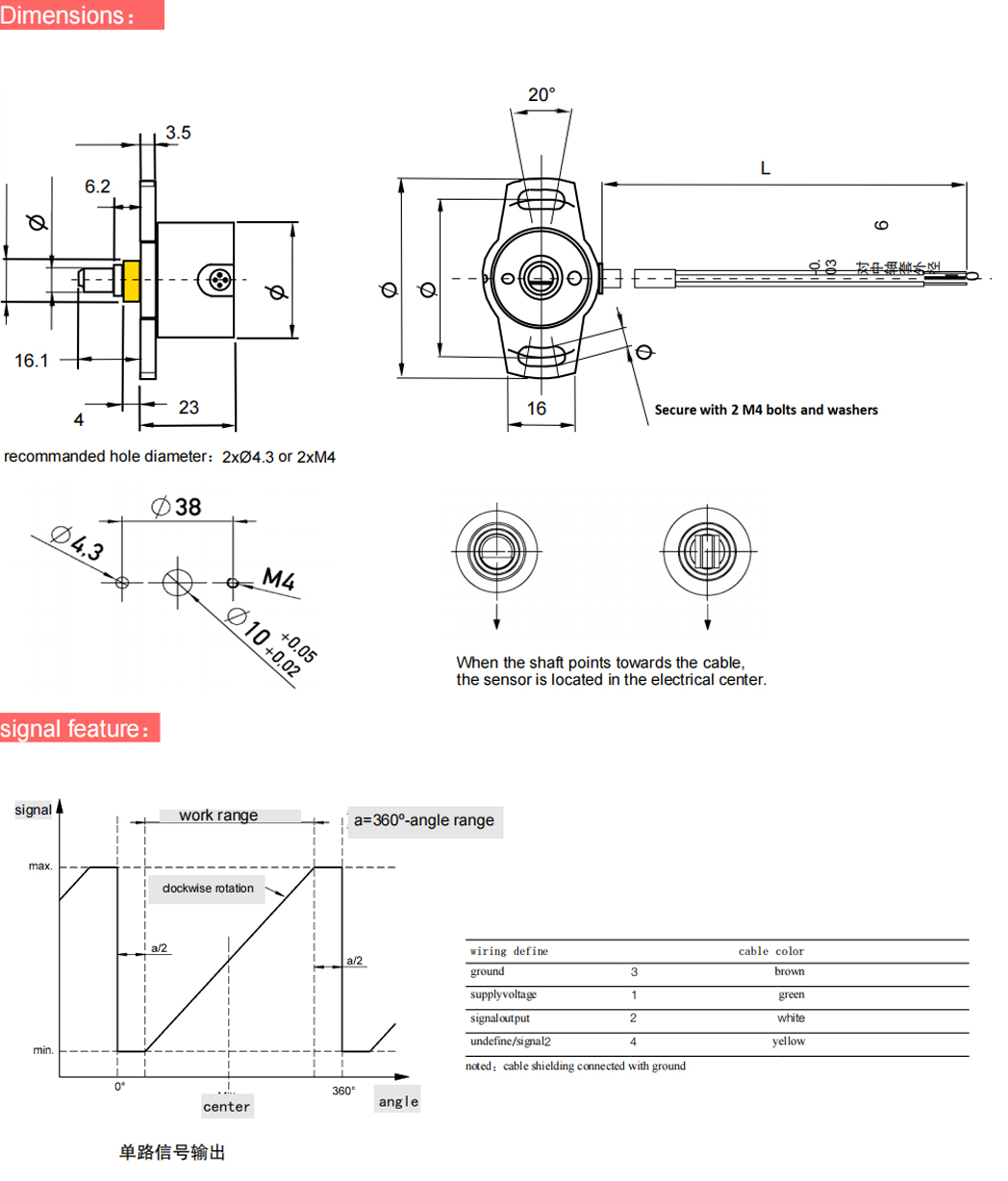

Dimension
Technical Characteristics
Other products
The sensor material has extremely low temperature drift
High accuracy of 0.2%, 0.3%, and up to 0.1% F.S
