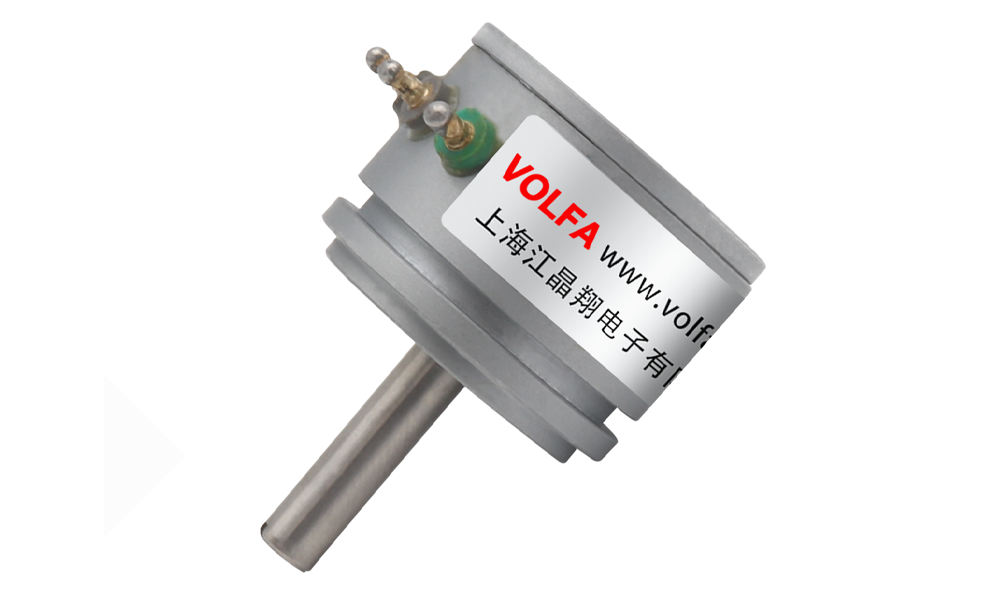

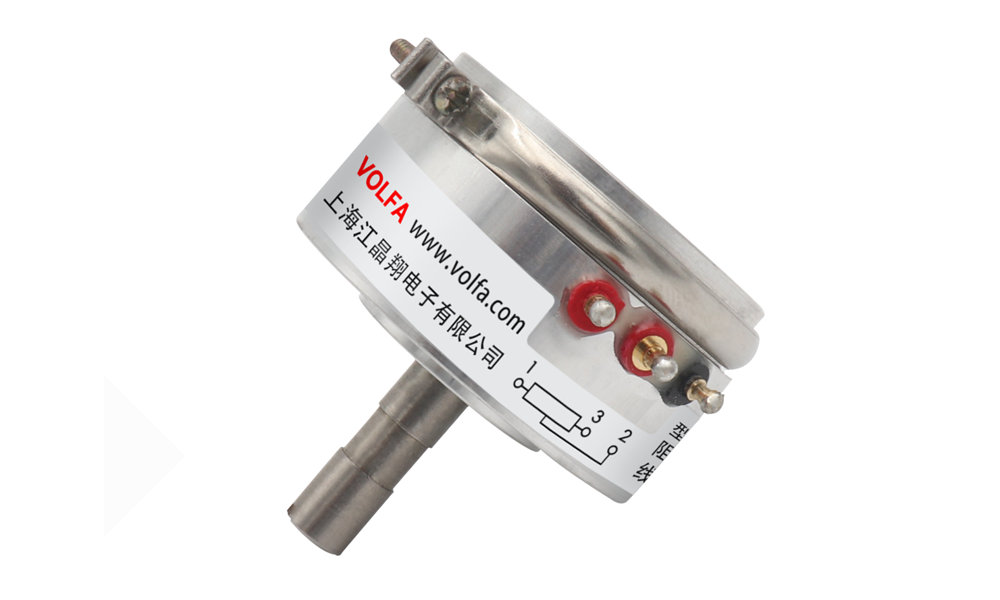

Rotary Position Sensor
Potentiometer type WDS15/22/25/36 series
The sensor material has extremely low temperature drift
High accuracy of 0.2%, 0.3%, and up to 0.1% F.S
High resolution, with a lifespan of over 20 million cycles
Output signal potentiometer, capable of standard analog quantity
Compact and sturdy structure.
Product Introduction
The sensor material has extremely low temperature drift
High accuracy of 0.2%, 0.3%, and up to 0.1% F.S
High resolution, with a lifespan of over 20 million cycles
Output signal potentiometer, capable of standard analog quantity
Compact and sturdy structure.

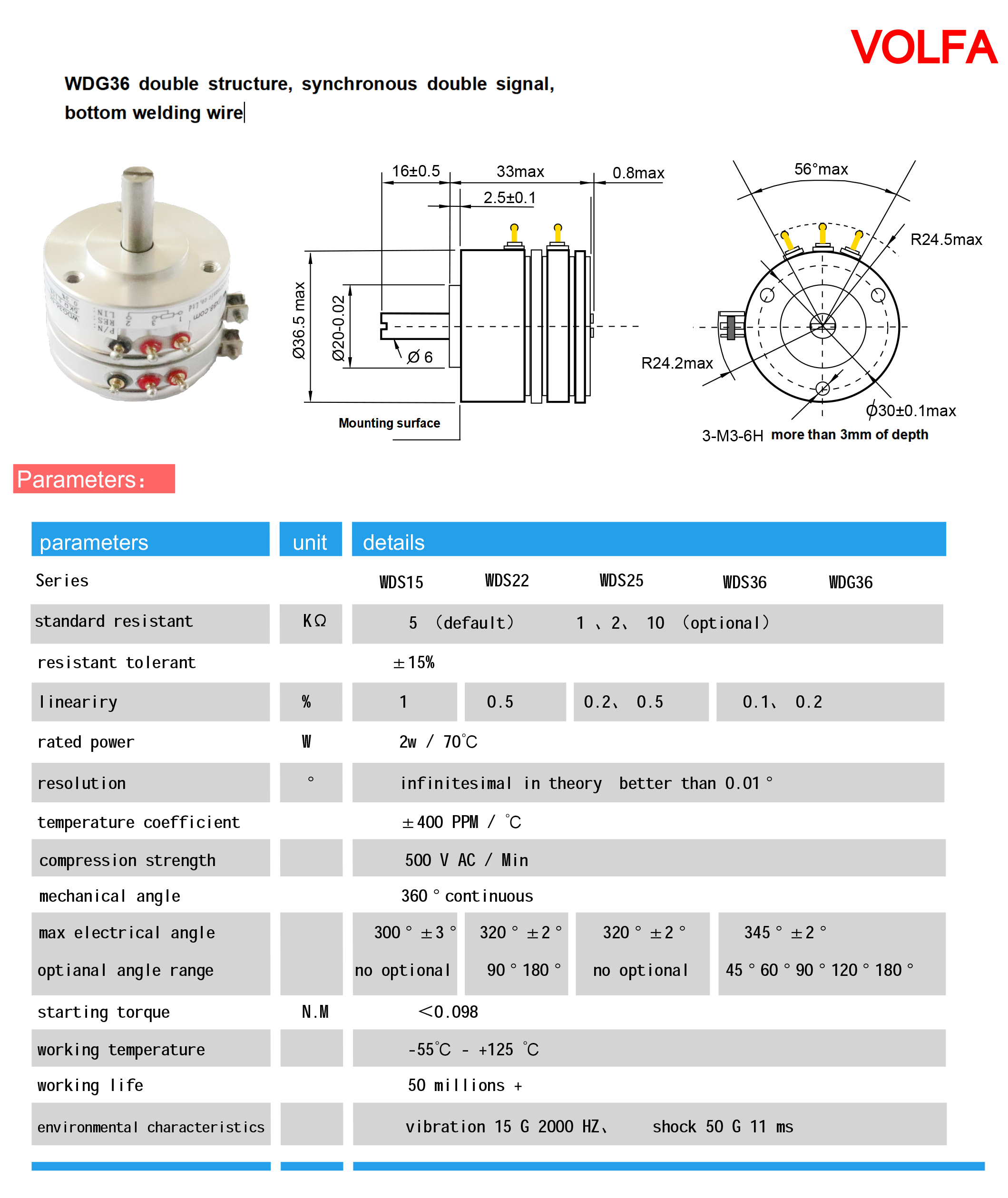

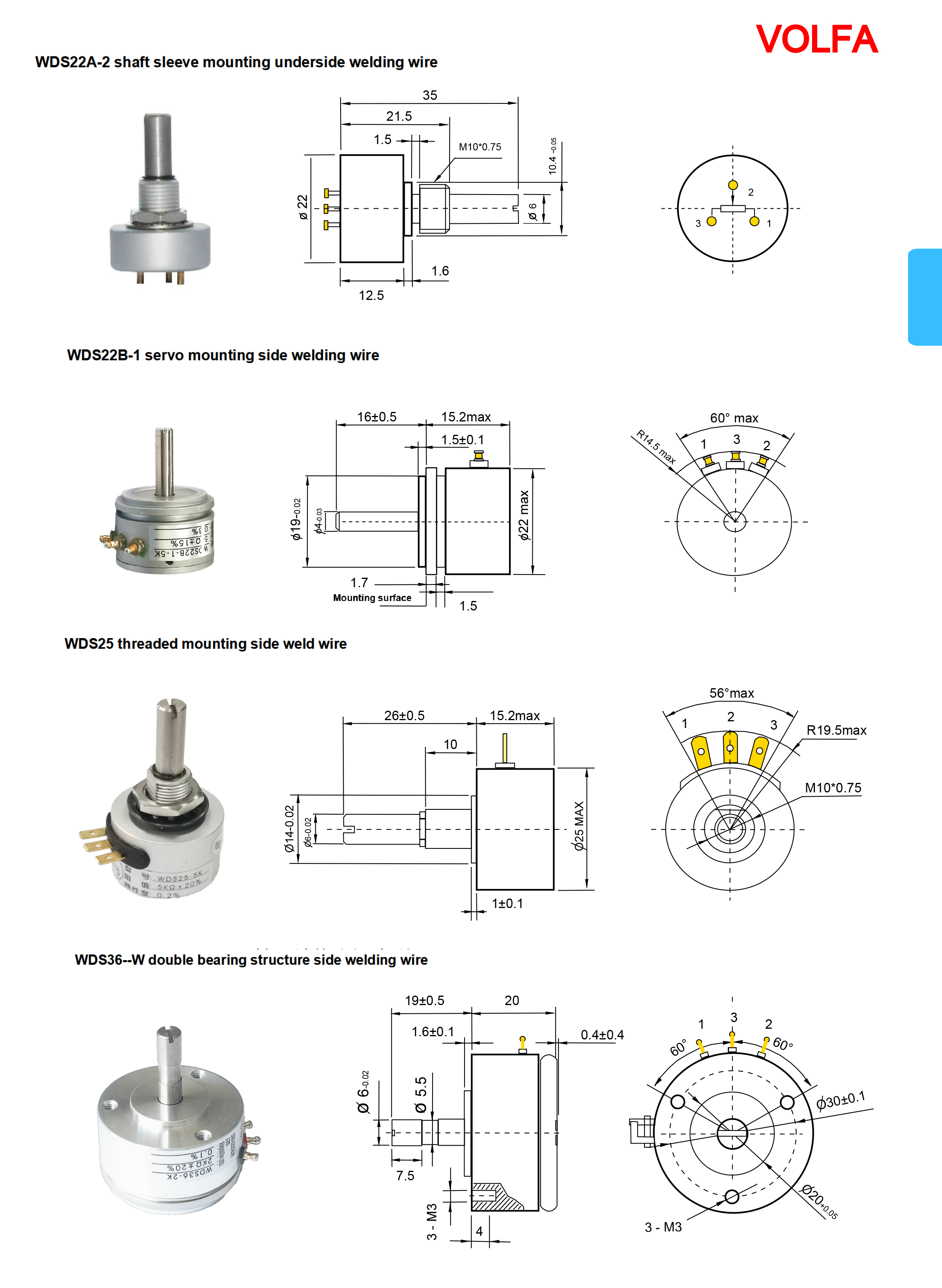

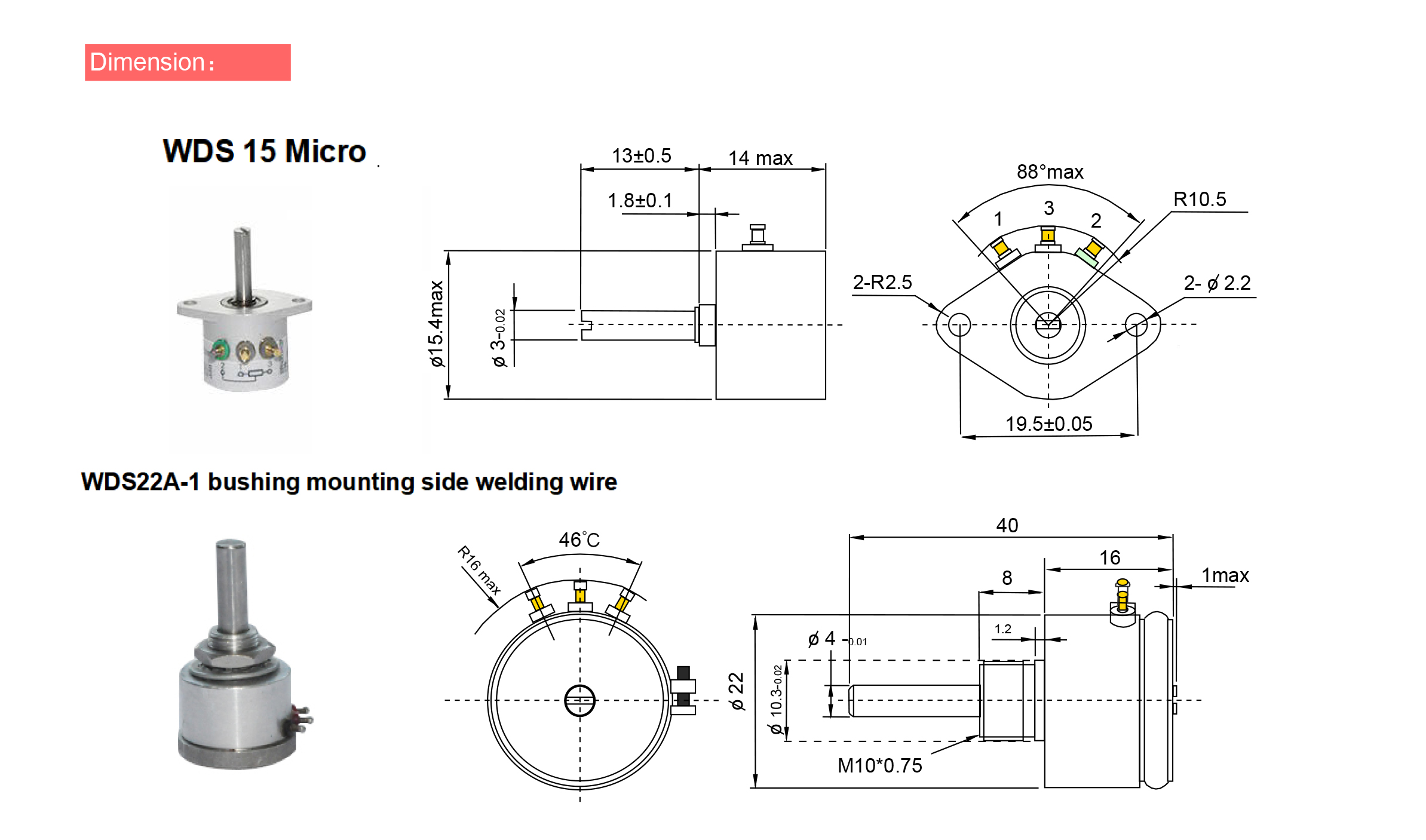

Dimension

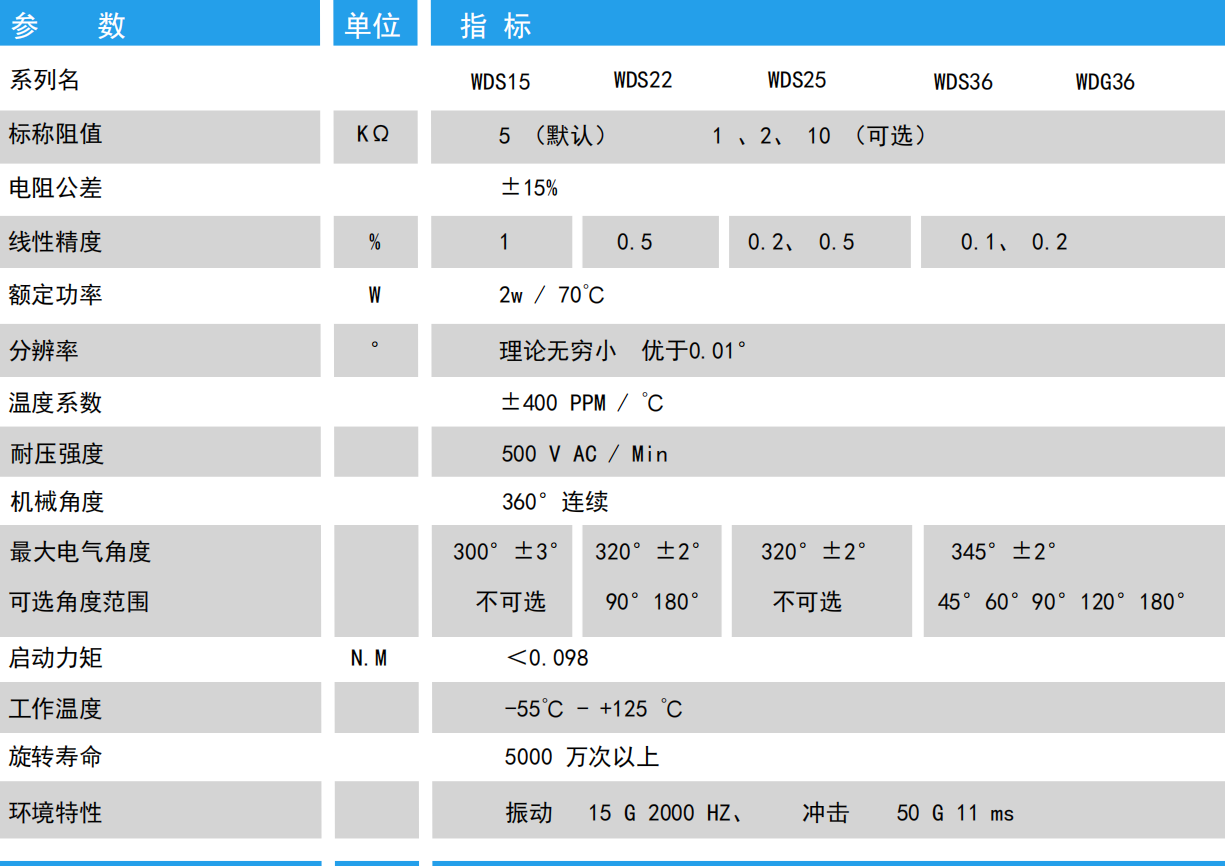

Technical Characteristics
