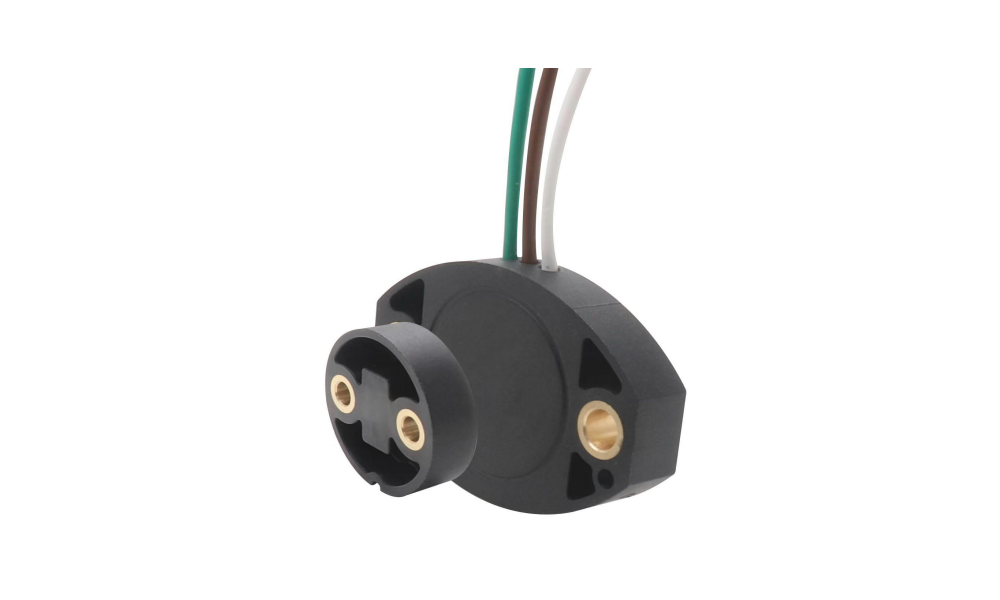

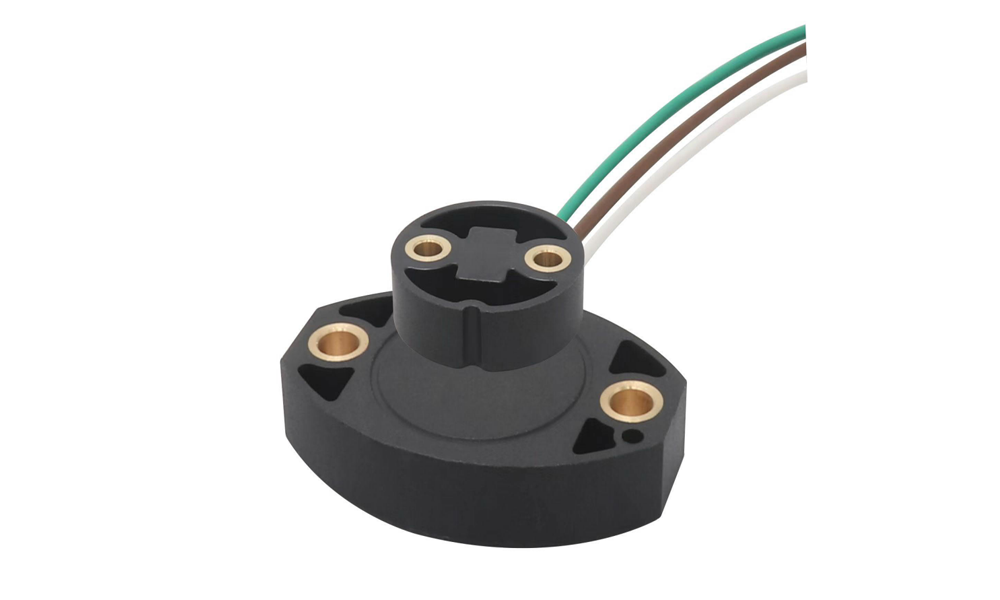

Rotary Position Sensor
WDH40
• Non-contact, magnetic induction measurement technology, magnetic block, sensor space isolation
• Working range up to 360°
• Resolution 12 bits, independent linear ±0.5%
• Easy installation
• Compact and strong structure, small size, long working life
• Protection level IP 67
• The alignment of the magnetic block allows the left and right deviation of ± 1.5mm, and the magnetic block notch is a spindle mark
Product Introduction
• Non-contact, magnetic induction measurement technology, magnetic block, sensor space isolation
• Working range up to 360°
• Resolution 12 bits, independent linear ±0.5%
• Easy installation
• Compact and strong structure, small size, long working life
• Protection level IP 67
• The alignment of the magnetic block allows the left and right deviation of ± 1.5mm, and the magnetic block notch is a spindle mark

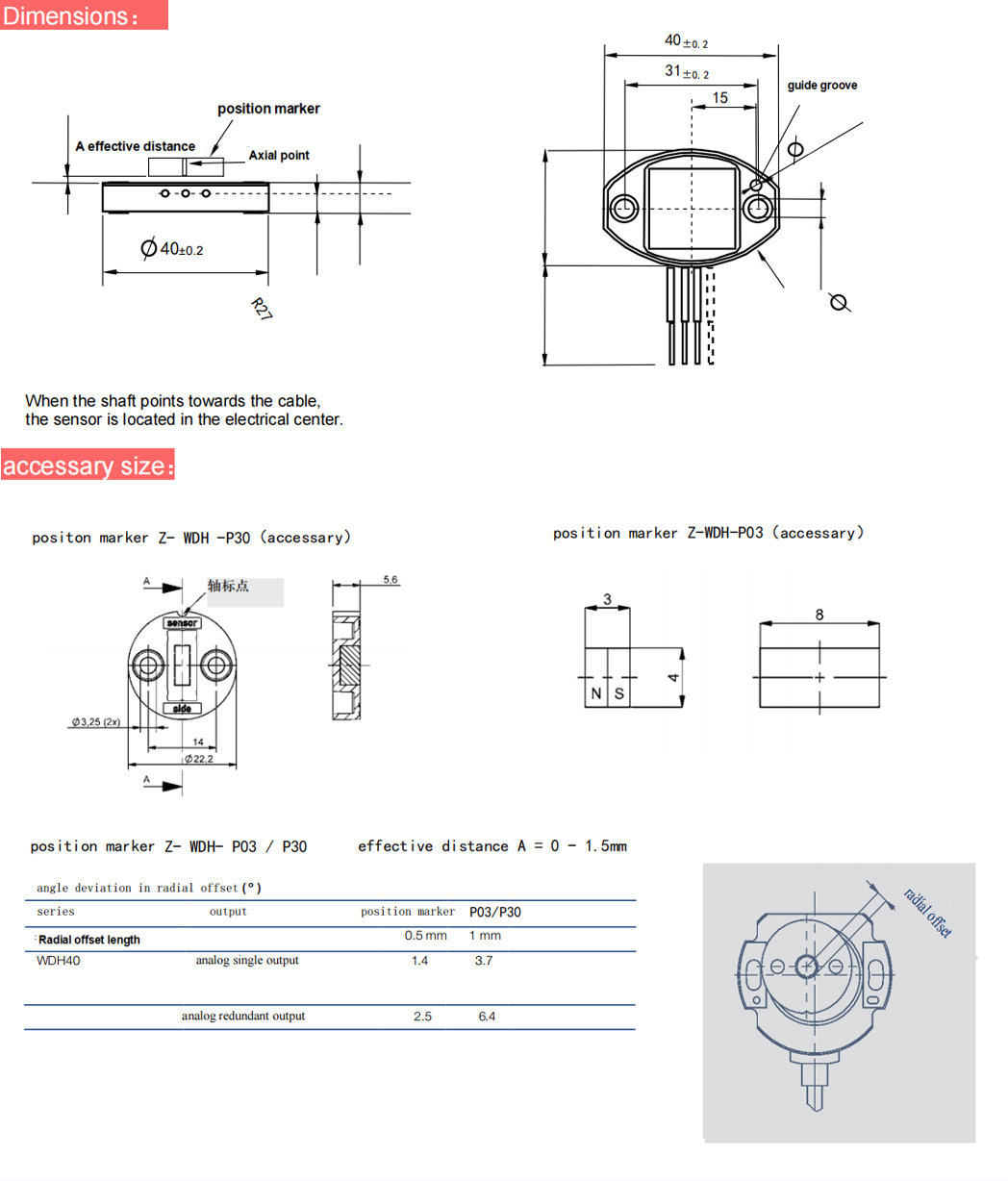

Dimension
Technical Characteristics
