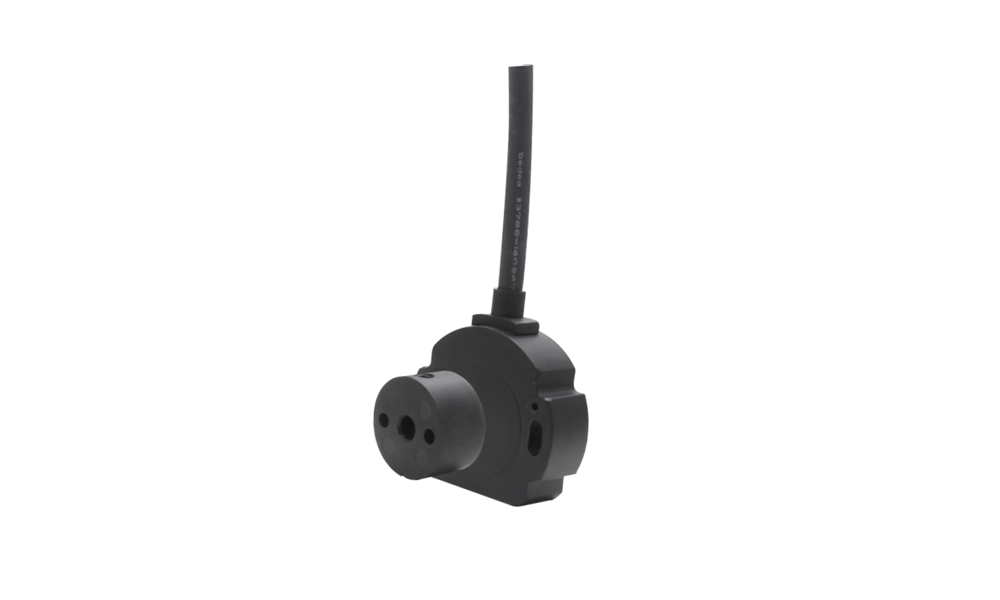

Rotary Position Sensor
WDH48
• Non-contact, magnetic induction measurement technology, magnetic block, sensor space isolation
• Working range up to 360°
• Resolution 12 bits, independent linear ±0.5%
• Very small lag Angle
• Compact and strong structure, long working life
• Protection level IP 67
• The magnetic block alignment allows the left and right deviation of ± 3mm, and the magnetic block notches are marked with axes
Product Introduction
• Non-contact, magnetic induction measurement technology, magnetic block, sensor space isolation
• Working range up to 360°
• Resolution 12 bits, independent linear ±0.5%
• Very small lag Angle
• Compact and strong structure, long working life
• Protection level IP 67
• The magnetic block alignment allows the left and right deviation of ± 3mm, and the magnetic block notches are marked with axes
Dimension
Technical Characteristics
