Signal Transmitter Module

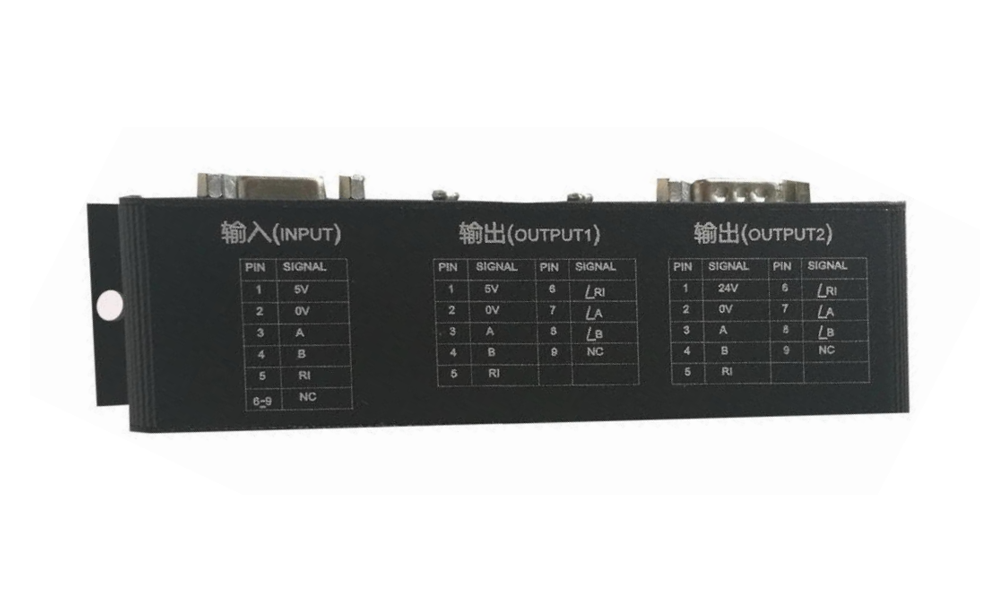

Raster scale signal adapter JJX3000 series
Product Introduction
Dimension
Technical Characteristics
|
Type
|
JJX3000-1S |
|
Operating Temperature
|
-25-125°C |
|
Operating Voltage
|
9V-35 V。 |
|
Input frequency
|
Up to 100KHz, still ensuring no output errors.
|
|
Output
|
Compatible with CMOS and TTL levels. When connected to PLC, compatible with PNP and NPN. The output has current limiting, short circuit prevention, and temperature shutdown functions.
|
|
Protection leve
|
IP51 |
|
Feature
|
Its main function is to convert the 5V square wave signal input by the grating scale into: one 5V TTL differential square wave signal output. One is amplified to a TTL square wave signal ranging from 9V to 35V (varies according to the input voltage). The voltage protection is as high as 40V
|
