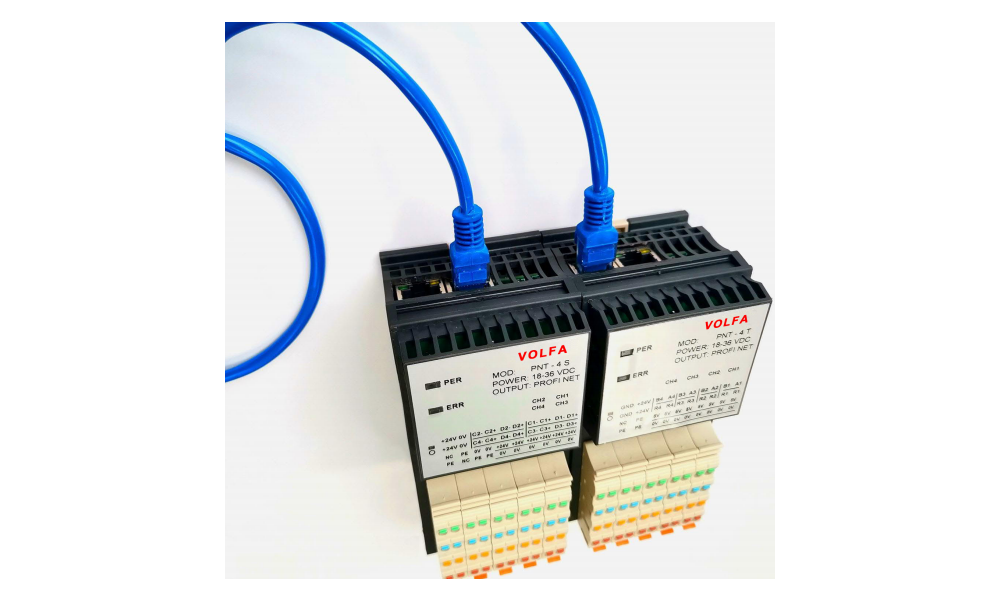

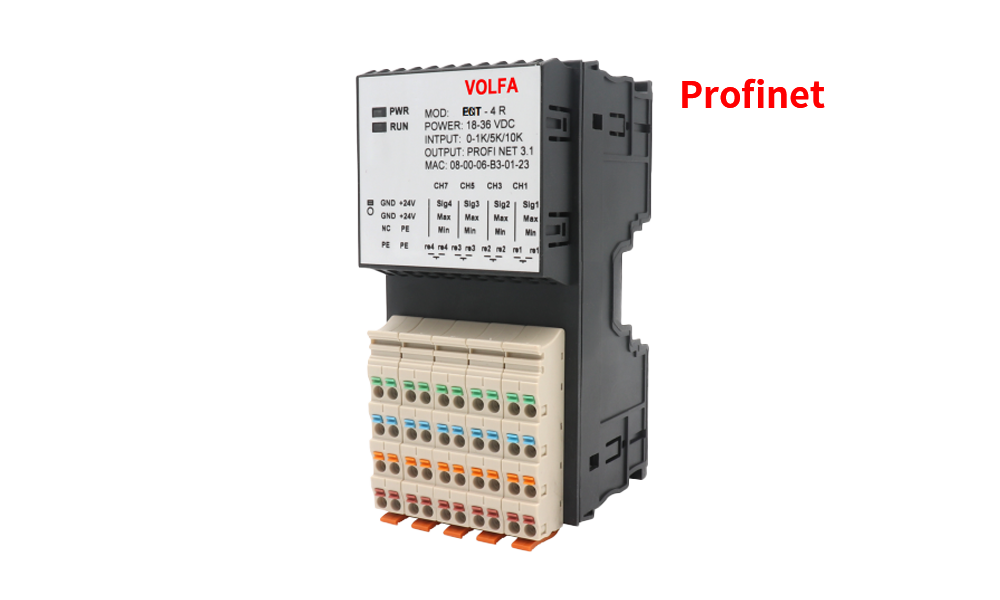

Signal Transmitter Module
PNT Series - 4 Bus Controllers
4-channel input signal independent transmission, supports external power supply.
Non-linearity less than 0.05% FS+1C.
Built-in 32-bit RAM chip, 20ms refresh output display.
With 2 profinet ports, P1 and P2.
Supports reset terminals (TTL, position input, sSl).
Internal parameters selectable in GSD file
Product Introduction
4-channel input signal independent transmission, supports external power supply.
Non-linearity less than 0.05% FS+1C.
Built-in 32-bit RAM chip, 20ms refresh output display.
With 2 profinet ports, P1 and P2.
Supports reset terminals (TTL, position input, sSl).
Internal parameters selectable in GSD file
Dimension
Technical Characteristics
Other products
• Four input signals are transmitted independently and can be used for external power supply.
• Nonlinearity less than 0.05%F.S+1C.
