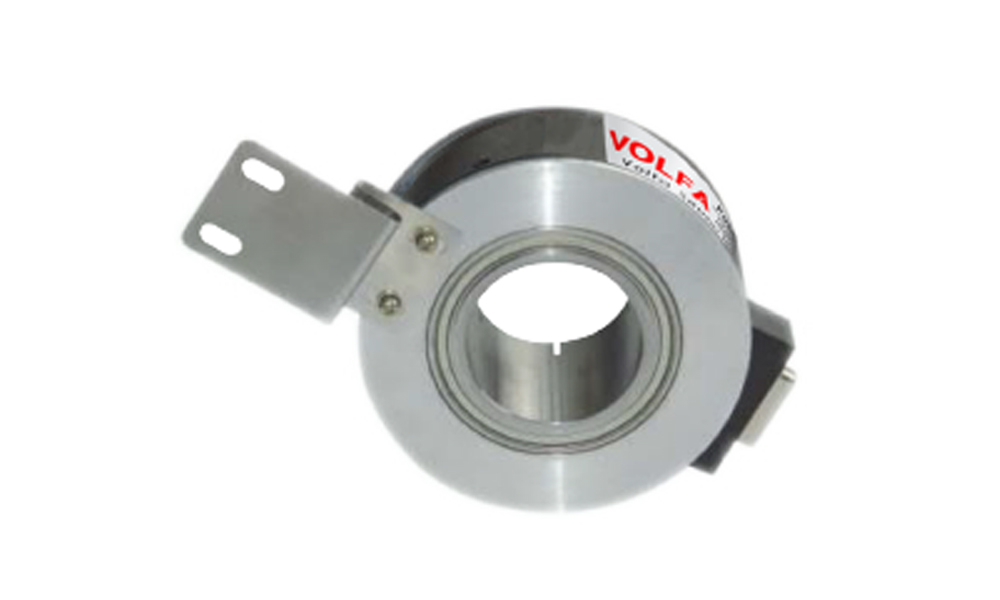

Rotary Position Sensor
Incremental IHC80 series
Strong axle load capacity and long working life
Modular design, high temperature resistance, and high reliability
High resolution, with a maximum line count of up to 10000 lines.
Optional output incremental pulse signal characteristics
Compact and sturdy structure.
Solid rotating shaft diameter 6mm, 10mm
The inner diameter of the hollow rotating bearing is 30mm (20, 25, 28) optional
Product Introduction
Strong axle load capacity and long working life
Modular design, high temperature resistance, and high reliability
High resolution, with a maximum line count of up to 10000 lines.
Optional output incremental pulse signal characteristics
Compact and sturdy structure.
Solid rotating shaft diameter 6mm, 10mm
The inner diameter of the hollow rotating bearing is 30mm (20, 25, 28) optional

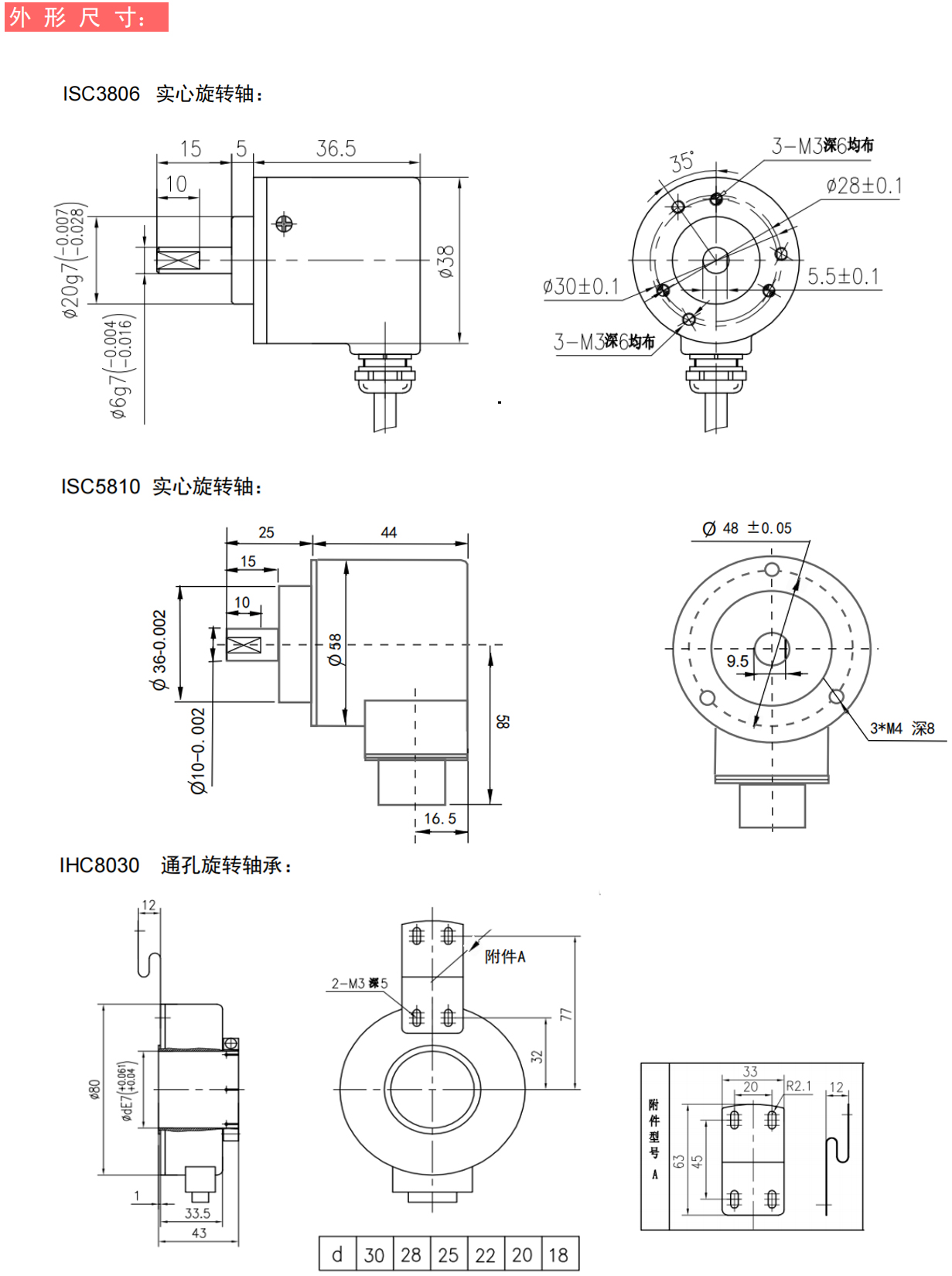

Dimension
Technical Characteristics
| parameter | unit | index |
| Working power supply | V | DC 5V/7-24V(±10%) |
| Maximum response frequency | HZ | 100K (limited by maximum speed) |
| maximum speed | rpm | 3000 |
| Maximum current consumption | 120 mA (unloaded) | |
| Maximum rise fall time | 200 nS (for long-term drive) | |
| Maximum rise fall time | 1 uS (at gas output) | |
| operation temperature | ℃ | -20 - 85 |
| storage temperature | ℃ | -20 - 85 |
| Mechanical Angle | 360 ° continuous | |
| Number of selectable pulses per circle | 360、600、1000、1024、1250、2000、2048、2500、5000、10000 | |
| protection grade | IP 54 | |
| starting torque | N.M | <0.006 |
| working life | h | ≥3万 (+25℃,2000rpm) |
| Impact resistance | 980m/s2,6ms, 2 times in XYZ direction each | |
| Anti vibration | 50m/s2，10~200Hz，XYZ方向各2h |
