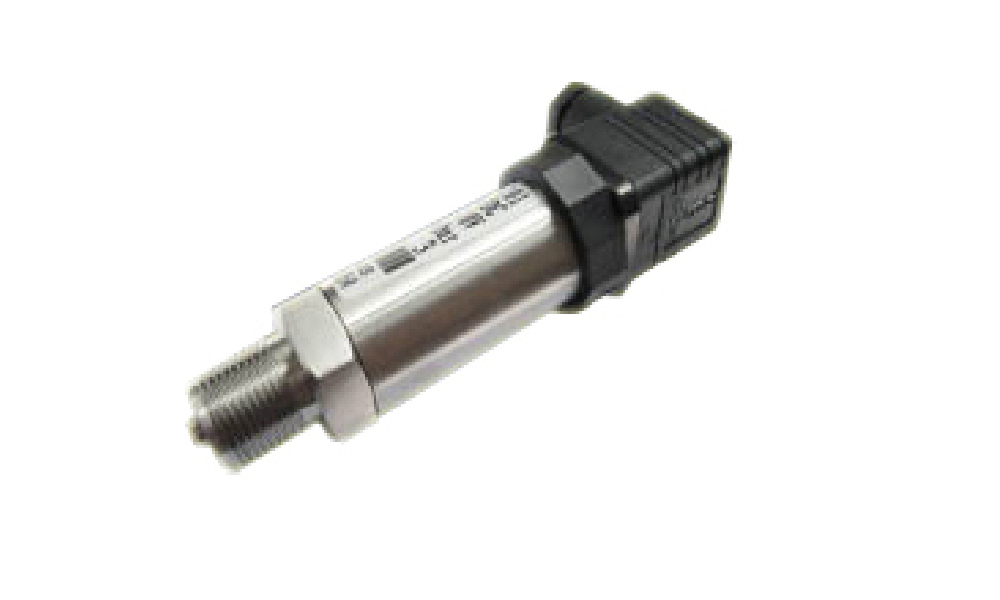

Force Transducer
Economic Pt201 Series
Strong corrosion resistance and long-term stability
Wide range temperature compensation
Multiple types of pressure interface threads and wiring methods
The nozzle and shell are both made of stainless steel material
Product Introduction
Strong corrosion resistance and long-term stability
Wide range temperature compensation
Multiple types of pressure interface threads and wiring methods
The nozzle and shell are both made of stainless steel material
Dimension
Technical Characteristics
| 技术指标 | Technical Specification |
| 量程: | -1bar.. 200bar |
| 精度等级: | 0.2%,0.3%0.5% |
| 线性度: | ±0.2% 或±0.5% |
| 迟滞: | ≤0.01%满量程 |
| 稳定性: | 优于0.1%/年 |
| 温度影响: | TK <±0.2%FS/K |
| 工作电压: | 18 ~ 36V DC |
| 负载电阻: | ≤ 1200Ω |
| 工作温度: | -30--80℃ |
| 介质温度: | -30--85 ℃ |
| 存储温度: | -30~85℃ |
| 防护等级: | IP65 |
| 外壳材料: | 不绣钢,塑料 |
| 密封件: | 氟素橡胶 |
| 安全过载: | 150% |
| 极限过载: | 250% |
